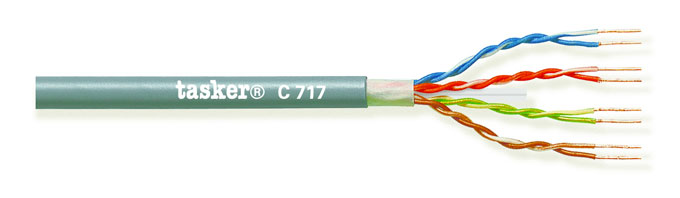

Cable LAN 6A U.T.P. 4x2x0,25 mm²

C717 L.S.Z.H.

New Cable LAN 6A U.T.P. 4x2x0,25 mm²

Description

U.T.P. (Unshielded Twisted Pairs) cable cat. 6A (Augmented), in CCA, UL verified for Broadcast, DMX systems, control equipments and horizontal cabling in local area network (LAN).

LAN cable cat. 6A for RJ 45 8 Pin connectors and panel installation according with standards: IEEE802.3an 10GBASE-T (10GBIT EthernetTM).


Sheath in L.S.Z.H.

Colors

  • Black

Cable length

Specifications

General features

Code

C717 L.S.Z.H.

Short description

U.T.P. Cat. 6A UL Verified in CCA

4x2x23 AWG

10 GBIT Ethernet

External sheath in LSZH

cable Features

Pair number
Conductors number
Conductor diameter (mm)
AWG
4
2
1.00
-

External cable diameter (mm)

6.2

Color code

    Black

Impedance Ohm (Ohm)

100

Download

Product data sheet
Download:Data/Network catalogue

Data/Network catalogue
