C44022

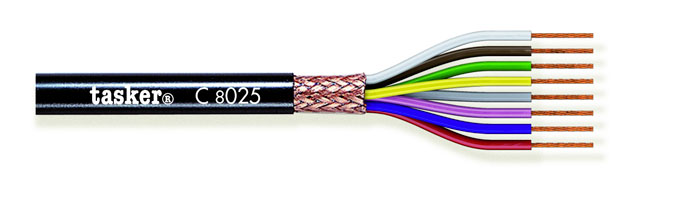

Tinned copper braided shielded cable 44 x 0,22 - CPR
Description
CPR Eca-certified shielded cable for electronics and data transmission, designed to guarantee safety and protection against interference in fixed and mobile installations.
Purpose and Usage: This cable represents the standard solution for wiring electronic systems, industrial instrumentation, and data interfaces operating in environments where fire protection is a regulatory requirement. The use of DIN 47100 color coding allows for rapid and unambiguous identification of each individual core, simplifying termination on terminal blocks or multipole connectors and reducing the risk of errors during the integration of complex control systems.
Features and Versatility: The distinctive feature of this model is the use of tinned copper for both the stranded conductors and the braided shield, offering excellent conductivity and 85% coverage against electromagnetic interference. The combination of flexibility and jacket robustness makes it extremely versatile, suitable for both connections within electronic equipment and the distribution of low-voltage signals in conduits, maintaining high data signal integrity even over medium-length runs.
Colors
Lunghezza Cavo
Specifications
General features
Code
Short description
44 x 0,22 - 23AWG
Braided shielded cables
Conductors: stranded in O.F.C. tinned copper
Cond. Insulation: PVC
Core colours: different colours
Total Shield: Braided covering 85% O.F.C. tinned copper
Shielded cable for data transmission and electronics.
cable Features
Pair number
Conductors number
44Conductor diameter
AWG
External cable diameter (mm)
Color code
-
Grey
