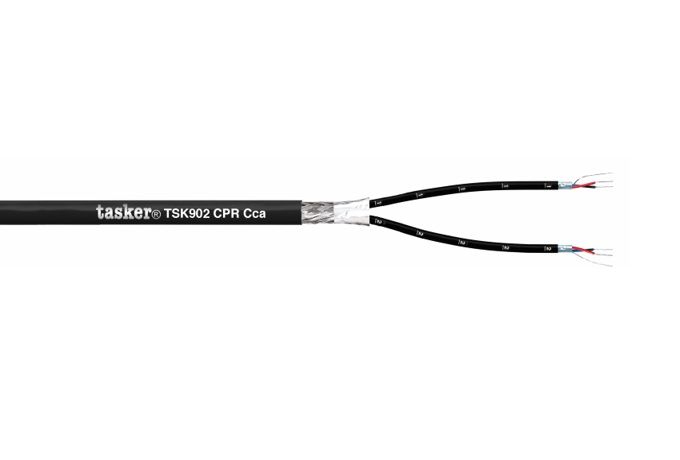

TSK902 CPR Cca — Multipair DMX cable 2x2x0,25 mm²

Description

Digital DMX multicore cable for fixed installation with a constant 110 Ω impedance and a flexible L.S.Z.H. low-smoke outer jacket, compliant with CPR regulations in class Cca - s2, d2, a2. Thanks to modern manufacturing techniques and the use of halogen-free materials, this cable combines excellent digital signal transmission reliability with high market safety standards, making it the ideal choice for designers and system installers in public spaces.

Purpose and Usage: This cable is specifically designed for connecting DMX lighting control lines and transmitting digital audio via the balanced AES/EBU protocol. It is used for fixed installations inside conduits, corrugated pipes, and drop ceilings in cinemas, theaters, conference halls, or multi-purpose buildings where current regulations require the exclusive use of CPR-certified cables for routing through building walls. Its structure allows for extremely easy cable management for quick termination on screw terminal blocks or connectors on mixers and control units.

Features and Versatility: The extraordinary versatility of the product stems from the combination of its special outer jacket compound and its suitability for both indoor and outdoor installations. The properties of the halogen-free thermoplastic material ensure a safe installation in high-traffic venues without compromising conductor flexibility. It is the ultimate solution for lighting designers and sound engineers who require an agile, robust, and fully compliant data interconnection.

Colors

Lunghezza Cavo
